Installation of CS6 Cassette Exterior Solar Shade
Exterior Solar Screen Shade Cassette size 6″ or CS6 is an attractive, custom-made screen system with an integrated protective cassette. This exterior solar shade offers a variety of screen fabrics as well as several different guide styles to allow complete customization based on your goals and installation considerations.
The CS6 cassette-style exterior solar shade is our cassette-style model that can handle the largest openings. The 6" cassette conceals and protects the fabric when not in use. The Exterior Solar Screen is great for enclosing screen rooms, porches, patios, underneath decks, and covering windows that capture too much heat gain and glare. Exterior solar shades are also great for sunrooms and solariums to dramatically improve comfort while maintaining your view and blocking harmful UV rays.
- Complete fabric protection
- Custom colors- call for availability
- CS6 provides comfort and added value to a property
- Optional performance and durability Perfect for patio openings, windows, sliding glass doors, sunrooms, and solariums
- Stylish, custom-made solar vertical blind
-
Maximum width: 6' up to 26' -
Maximum projection: 3' up to 16'

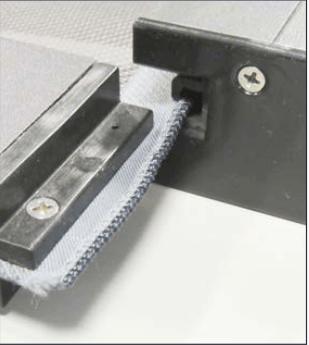

Standard Track Rail
U-shaped track rail with bottom hem bar end cap designed to move up and down inside the track opening
Cable
Wire top attachment to bracket or cassette guided through bottom hem bar end cap with optional attachments at the bottom.
Rod
Stainless steel solid rod guidance with attachment to bracket or cassette guided through bottom hem bar end cap.
Free Hanging/No guidance
Option with external bottom hem bar profile or concealed weight bar in fabric pocket without cable, track rail, or rod guidance assistance.
Pratika Rail
Pratika Rail is a drop screen with cassette that is perfect for when total closure is required, as it does not allow light to get in.
Let's create the perfect drop shades for you.
Serving Northern California: Our team of experts can address any inquiries and guide you in crafting the perfect custom Drop Shades from top brands like BAT, KE, and Goodwin-Cole.
| CS0 Drop Screen | CS4 Drop Screen | CS5 Drop Screen | CS6 Drop Screen | |
|---|---|---|---|---|
| Width (1/4” increments) | 3’ - 26’ (32’ for CS0 with a split) | 3’ - 13’ | 3’ - 20' | 6’ - 26' |
| Projection | 3’ - 16’ | 3’ - 10’ | 3’ - 16’ | 3’ - 16’ |
| Clear vinyl windows - width for Group 5A | 3’ - 16’ | 3’ - 13’ | 3’ - 16’ | 6’ - 16’ |
| Clear vinyl windows - projection for Group 5A | 3’ - 12’ | 3’ - 8’ | 3’ - 12’ | 3’ - 8’ |
| Cassette options | NONE | 4” | 5" | 6" |
| Roller tube sizes | 70 mm up to 13’ 80 mm up to 16’ 85 mm up to 20’ 110 mm up to 26’ (80 mm as split roller up to 32’) | 70 mm | 80 mm up to 16’ 85 mm up to 20’ | 110 mm standard up to 26’ |
| Complete fabric protection | No | Yes | Yes | Yes |
| Available with guides: cable, rod, zip, recessed and regular track | Yes | Yes | Yes | Yes |
| Pratika rail | No | No | Yes | No |
| Hood | Available as an option | Hood not needed with cassette option | Hood not needed with cassette option | Hood not needed with cassette option |
| Motorized or manual | Available as motor or manual | Available as motor or manual | Available as motor or manual (manual up to 16’) | Motorized only |
| Frame colors | White, Charcoal, Sand, Brown | White, Charcoal, Sand, Brown | White, Charcoal, Sand, Brown | White, Charcoal, Sand, Brown |
| Custom colors | Please call for availability | Please call for availability | Please call for availability | Please call for availability |
| Framework warranty | 10 year | 10 year | 10 year | 10 year |
| Soffit mount | Yes | Yes | Yes | Yes |
| Wall mount | Yes | Yes | Yes | Yes |
